This page does not cover every model, however most of the main models are mentioned.
The following is from these printing trade magazines-
The Inland Printer - Volume 106 - Page 8, 1940
Printing Equipment Engineer - Volumes 61-63 - Page 8, 1941
Thanks to the high standards set by Cleveland Engineers, the four Models of Cleveland Folders illustrated here not only meet present day folding needs ... they are designed and built to meet FOR YEARS TO COME the demand for Wide Variety, High Speed, Range of Sizes, Convenience of Operation and Durability. AHEAD IN VARIETY OF FOLDS Each Cleveland Model makes practically every type of fold ever needed in the largest sheet it will fold- right angles, gang work, parallels, multiple signatures or single signatures. AHEAD IN PRODUCTION The New Cleveland Models operate at speeds 50% faster than older models. This feature, together with the continuous feeder- no stops for reloading- assures hourly production far in advance of any other folder... Ask for literature- ask for a representative. It costs you nothing to get the facts about the Cleveland. No obligation.
CLEVELAND SIZES
"Double-O" 4 x 6" - 22 x 32"
Model "W" 3 x 4" - 14 x 20"
"Double-M" 5 x 7" - 28 x 58"
Model "K" 10 x 12" - 39 x 58"
Dexter Folder Company, Pearl River, New York, NEW YORK, 330 West 42nd Street, CHICAGO, 117 West Harrison Street...
The following is from these printing trade magazines-
Printing - Volume 65 - Page 19, 1941
Inland Printer, American Lithographer - Volume 107 - Page 8, 1941
The Inland Printer - Volume 109 - Page 72, 1942
Three GREAT CLEVELANDS!
"Greatness is Achieved - not Accorded" The achievements of these three Modern clevelands have won for them the motto: "Years Ahead in Performance"- and no wonder! When you install one
of these Models you are getting the cumulative benefits of years of investigations, surveys, mechanical engineering and invention, and the most modern production methods.
First in Production and Earning Power THE GREAT MODEL "W" This Smallest of Clevelands folds the great variety of small work, circulars, package inserts, letters, greeting cards, etc., in one to five folds, at top speeds with the greatest accuracy. The Continuous Reloading Feature of its Feeder, with no stops for reloading, gives you the highest possible output per hour at unbelievably low cost per 1000. The Air Wheel Feature provides for folding of high class work having heavy illustrations and bleed edges without marking.
with Continuous Feeder Folds Sheets 4 x 6" to 22 x 32" THE GREAT "DOUBLE-O" This Middle-Size Folder gives you the quick Folding Service present day Direct Mail and Job Printing demands. A check-up of thousands of Direct Mail pieces reveals that 96% come within the size and folding range of the "double-o." The "double-o" is unequalled for accuracy and variety of folds. Its high speed and continuous feeding- no stops for reloading- assure the high volume that often makes folding your most profitable operation on the job.
THE GREAT "DOUBLE-M" Every fold, as far as we know, that can be made on all other types and makes of jobbing folders, comes within the folding range of the "double-m", in sheet sizes up to 28 x 58". In addition, the "double-m" makes a great variety of folds that cannot be made on any other folder, in parallels, right angles or combinations of parallel and right angle folds. Equipped with Continuous Feeder- no stops for reloading. Fifty per cent faster, and far more versatile and convenient, than its predecessor, the old MODEL "B" CLEVELAND.
For your FOLDING requirements it will pay you to become better acquainted with these three great clevelands that will improve your folding service, with extra profits to yourself.
Printing Equipment Engineer - Volumes 68-71 - Page 27
1944
DEXTER FOLDER COMPANY PEARL RIVER, NEW YORK NEW YORK- CLEVELAND FOLDING MACHINES
The six models of Cleveland Folders cover the entire range of folding from 3 x 4" to 39 x 64" sheet sizes:
Model "W" - 5 fold plates- 3 x 4" to 14 x 20"

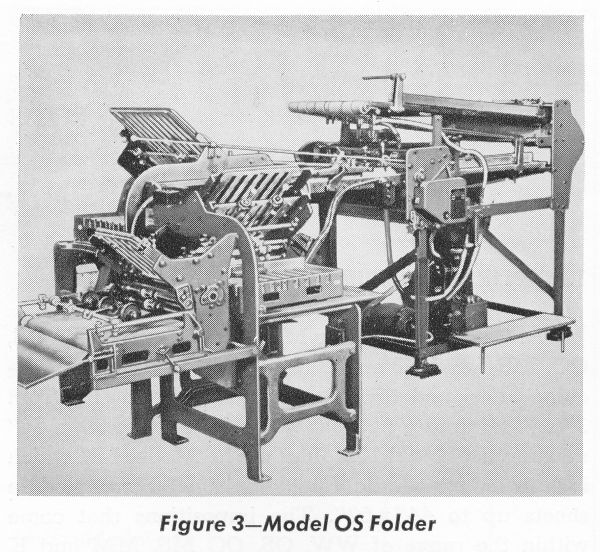

Model "O-S" - 8 fold plates- 4 x 6" to x 25"

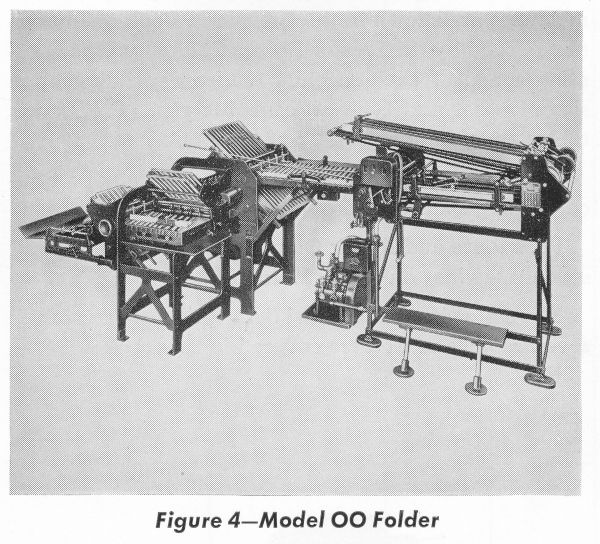

Model "OO" - 9 fold plates- 4 x 5" to 22 x 32"
Model "M-S" - 10 fold plates- 5 x 7" to 25 x 38"

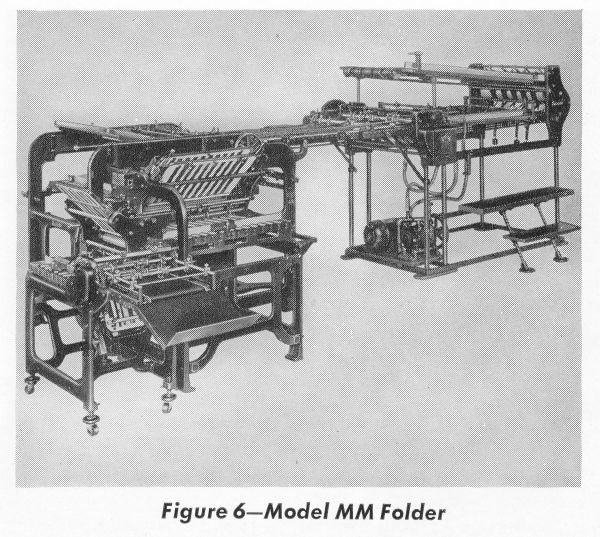

Model "MM" - 11 fold plates- 5 x 7"'to 28 x 58"

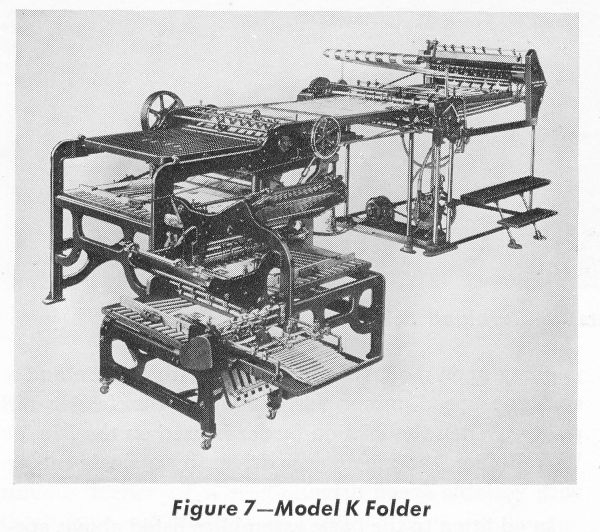

Model "K" - 10 fold plates- 7 x 10" to 39 x 64"
Model "KK" - 4 parallel plates- 7 x 10" to 42 x 62"
(They list seven models, not six.)
The below images are taken from an undated Dexter Cleveland Folders catalog. You will see they correspond well to the above list of models.
|
| |
|
|
|
|
|
|
|
|
|
Bookbinding & Book Production - Volume 52 - Page 69
1950

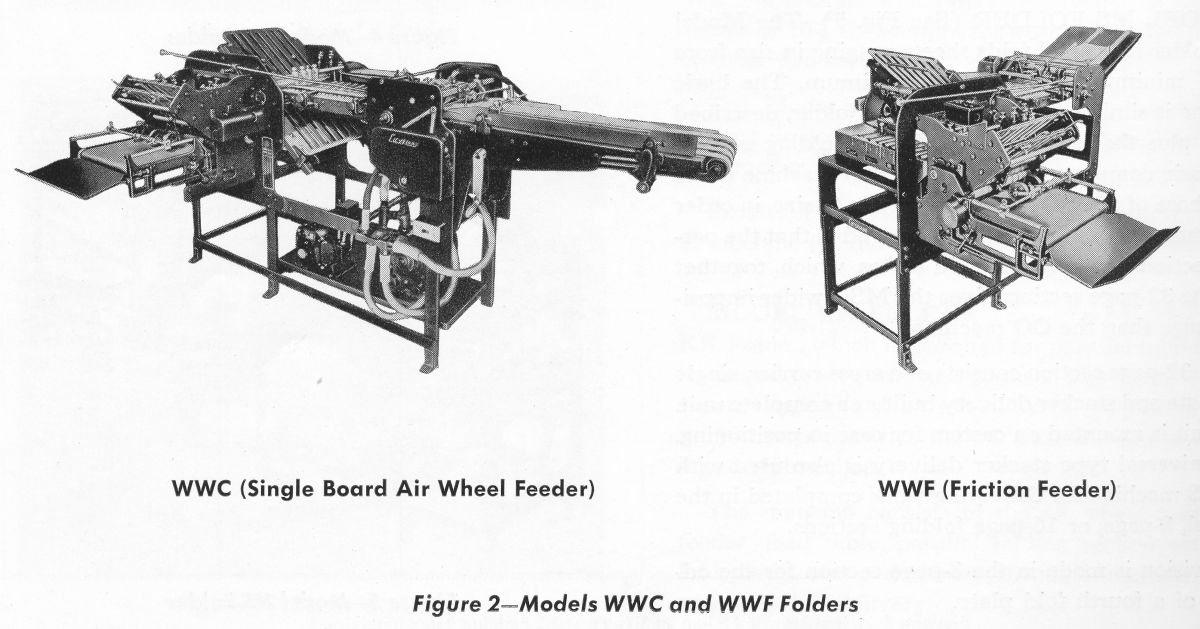

The single board feeder with the friction feeder can be attached to the Model WW folder. Because of its upper loading board, the double board feeder may be loaded with a much larger lift of paper than either of the other two machines. It is used with Cleveland Folding Machine Models OS, 00. MS, MM. K. and KK. Sheet separation is started when the sheets are fanned out as the operator places them on the upper board. As they are conveyed to the lower feeding board by...
This is more Google Books search snippets-
American Printer and Lithographer - Volume 133 - Page 51
1952

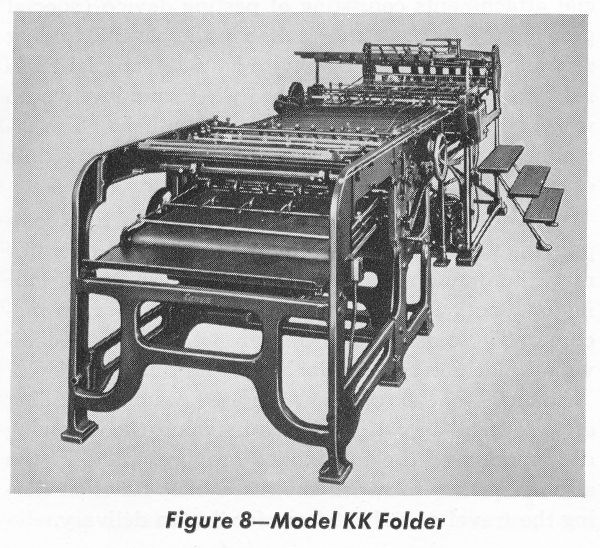

and Lower-cost Folding Cleveland Model "K K" - Largest all- buckle type right angle folder built. ... With Model "K K" many jobs that formerly had to be folded on blade type folders on account of sheet size, can now be folded the economical Cleveland way. When you buy a Cleveland, you buy the best that long experience, sound engineering and the finest materials for the purpose - can produce. For all...
Book Production - Volumes 57-58 - Page 37
1953
The manufacturers of the buckle type folding machines have been trying to exceed their largest and smallest limits and at the same time refine and improve their standard models. The Dexter Folder Co. who manufacture Cleveland folding machines have this year introduced their model KK. ... They have also introduced their new speedy AT folder which has 4 fold plates in the parallel and right angle section giving 8 fold plates instead of the customary 5 or 6. It accommodates a sheet 18 x 24...
The following is from these printing trade magazines-
American Printer and Lithographer - Volume 134 - Page 64 Page 8, 1953
Inland Printer, American Lithographer - Volume 133 - Page 103, 1954
Bookbinding & Book Production - Volumes 59-60 - Page 30, 1954

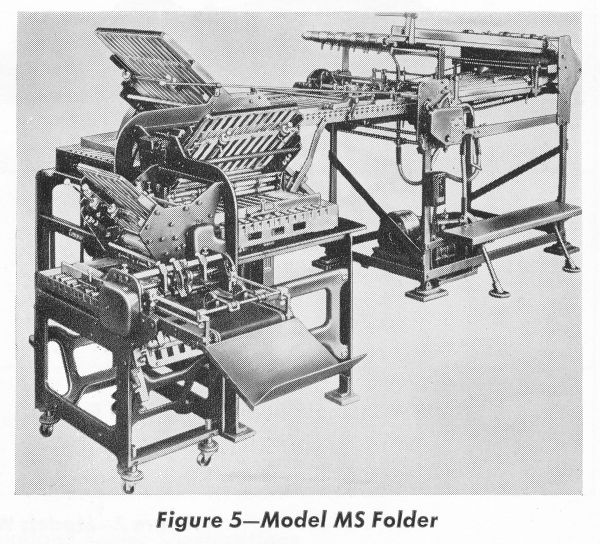

For fast, dependably accurate and lower cost folding look to Cleveland Cleveland Model "MS" with Cleveland Continuous Feeder. Maximum sheet 25 x 38" (oversize 26 x 40"). Minimum sheet 5 x 7".
When you buy a Cleveland, you buy the best that more than fifty years experience, sound engineering and the finest materials can produce. For all-around dependability, trouble-free operation and long life, nothing else compares with a Cleveland. Only Cleveland has these features: Diagonal roller feed table Diagonal roller cross carrier (no "hickey roller" needed). Each fold plate equipped with its own swinging deflector. Once set, your Cleveland stays set to the end of the run, no matter how long.
Should your Cleveland require servicing, you know it is backed by expert service available promptly. The experience of users over half a century proves that the cost of Cleveland maintenance is among the lowest of any bindery equipment.
There are eight Cleveland models, handling sheets from 44 x 64" to as small as 3 x 4". One or more of these models will meet every folding need economically, whether you operate a small printshop or a trade bindery. We will be glad to survey your folding problems and make recommendations. Write for... Dexter Folder Company General Sales Offices 330 West 42nd Street, New York 36, N. Y. Boston, Philadelphia,...
Book Production - Volumes 63-64 - Page 12
1956
MODEL WW 14 X 20" Clevelands . . . All Years Ahead in Utility, Speed and Earning Capacity . . . Proved by Performance, NOT just idle claims! Every Cleveland folder, large or small, has established a world-wide reputation for dependable service. ... Send for complete information on the 7 great Cleveland Folders. , MODEL KK 44x58" MODEL OS 19x25" MODEL MS 25x38" MODEL AT 17 x22- DEXTER FOLDER COMPANY General Sales ...
The American Pressman - Volume 67 - Page 9
1956
Clevelands . . .MODEL WW 14 X 20" All Years Ahead in Utility, Speed and Earning Capacity . . . Proved by Performance, NOT just idle claims! Every Cleveland folder, large or small, has established a world-wide reputation for dependable service. Over the years... Send for complete information on the 7 great Cleveland Folders. MODEL MM 28x44" MODEL OS 19x25" MODEL MS 25x38" MODEL AT 17... DEXTER FOLDER COMPANY DIVISION OF MIEHLE PRINTING PRESS & MFG.
Inland Printer, American Lithographer - Volume 138 - Page 22
1956
Clevelands MODEL WW 14x20- All Years Ahead in Utility, Speed and Earning Capacity . . . Proved by Performance, NOT just idle claims! Every Cleveland folder, large or small, has established a world-wide reputation for dependable service. Over the years ... Send for complete information on the 7 great Cleveland Folders... DEXTER FOLDER COMPANY DIVISION OF MIEHLE PRINTING PRESS & MFG. CO. General Sales Office 219 East 44th Street New York
Book Production - Volumes 69-70 - Page 49
1959
Cleveland's new KS folder will be on the market in about 4-6 months; it features this plate line- up: 4-4-2-2, and will operate at 350 feet per minute. Micro adjustments can be made on each plate. The 32pp section is now motor driven, which would be good for map folding.
Graphic Arts Monthly and the Printing Industry
1966
Dexterity begins with Dexter Three folders in one- that is. OVERLY'S BELIEVES THAT'S ITS JOB! Sure he has more time for sports cars. His shop has a Dexter KS folder. Dexterity begins with Dexter medium to large capacity folding, scoring, perforating, slitting at top speeds on the same machine- that's folder dexterity and that's just the kind of versatility the Dexter (Cleveland) KS folder brought to his shop. ... Write for our brochure, Dexter (Cleveland) Model KS Folder.
The RS folder machine was a large folder like the KS folder.
Book Production Magazine- Volume 73 - Page 56
1961
New Dexter Folder Offers Versatility. The latest addition to the Dexter (Cleveland) folder line is the completely new Model RS buckle folder. The machine takes sheets up to 32x62" in parallel, 32x46" for right angle work, with minimum sizes for both to 8 1/2 xll".
In making the announcement, Dexter Sales VP A. E. Peckman stated that the Model MM (Cleveland) folder has been discontinued. The new machine features a mobile "Hitch-hiker" unit, combining its 16 and 32-page sections. The unit...

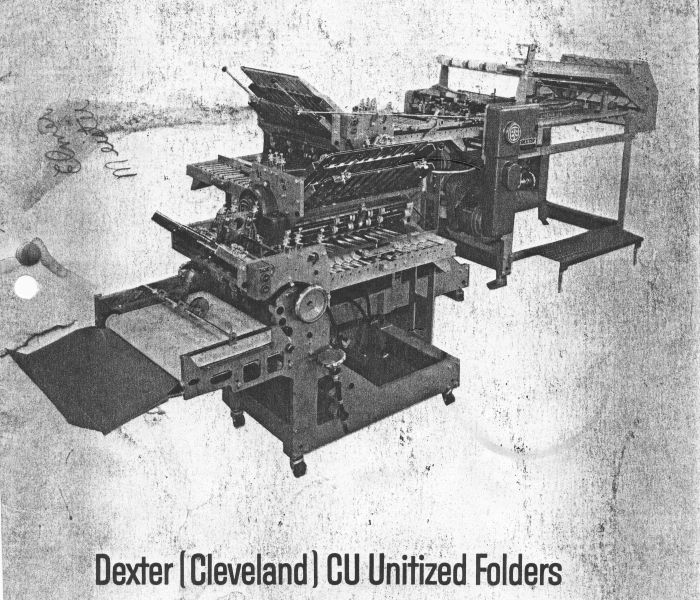

The first folder that I know of which was made in separate sections was the Dexter Cleveland CU folder. The "CU" standing for "Cleveland Unitized." It had rollaway units. Now you could line up the sections in tandem for more parallel folds.
Book Production Industry - Volume 6; Volume 41 - Page 57
1965
Dexter Announces New CU-20 Unitized Folder. Versatility of operation is offered by a new unitized buckle folder announced by the Dexter Co., division of Miehle-Goss-Dexter, Inc. The CU-20 consists of three separate folder sections and a feeder. Both the second and third folder sections are mounted on casters and can be used in various positions either at right angles or in tandem. In addition, these two units can be used with other machines or as separate hand-fed folders.
Graphic Arts Monthly and the Printing Industry
1965
Unitized Buckle Folder Known as CU 20, a unitized buckle folder, consisting of three separate folder sections and a feeder, is announced by the Dexter Company. A. reported, both the second and third folder sections are mounted on casters and thus can be used in various positions either at right angles or in tandem. In addition, these two sections can be used with other machines.
Book Production Industry - Volume 6; Volume 42 - Page 54
1966
Dexter's CU-20 folder, unitized for easy variation of folding layout, was shown with rollaway units.
In-plant Offset Printer - Volume 5 - Page 62
1965
THE DEXTER CO.
Complete line of folding machines: Model AS folder for all work from 3 x 4 to 18 x 24, Model MS from 5 x 7 to 26 X 40, Model WS from 3 x 4 to 14 x 20, WSF universal folder from from 2 1/2 x 3 1/2 to 14 x 20. Geared speeds to 4200" per minute.
(This might be used equipment sales. ??)
Graphic Arts Monthly and the Printing Industry - Page 113
1965
That's exactly what you get with a Dexter folder . . . a perfect fold every time, no matter how long the run. There's a Dexter (Cleveland) folder for every printed piece. And, every Dexter folder handles tricky folds, gang folds, right-angle multiples . . . everything. Dexter folders are fast. In fact, they fold at 4200" per minute, and that's top productivity. Impositions? Dexter's nine models cover the entire spectrum of arrangements... It's the widest choice of folders available anywhere. And...
Miehle-Goss-Dexter was acquired by North American Rockwell in 1969, and Miehle-Goss-Dexter was reborn as MGD Graphic Systems of North American Rockwell. Dexter's folders under MGD when owned by North American Rockwell dropped the "Cleveland" brand name.
Below is one of the Dexter folder machines without the "Cleveland" line name.
Book Production Industry - Volume 6; Volume 47 - Page 48
1971
Dexter Announces Super Duty Folder. The new Super Duty folder has been announced by the Dexter division of MGD Graphic Systems
To see more about the Dexter Folder Company refer to this web page-
My Dexter Folder Company Page
This page is the result of webpage searches and some pics off the web, and brochures and manuals and photos that I own. All information is correct to the best of my knowledge.
-Dennis Weaver
